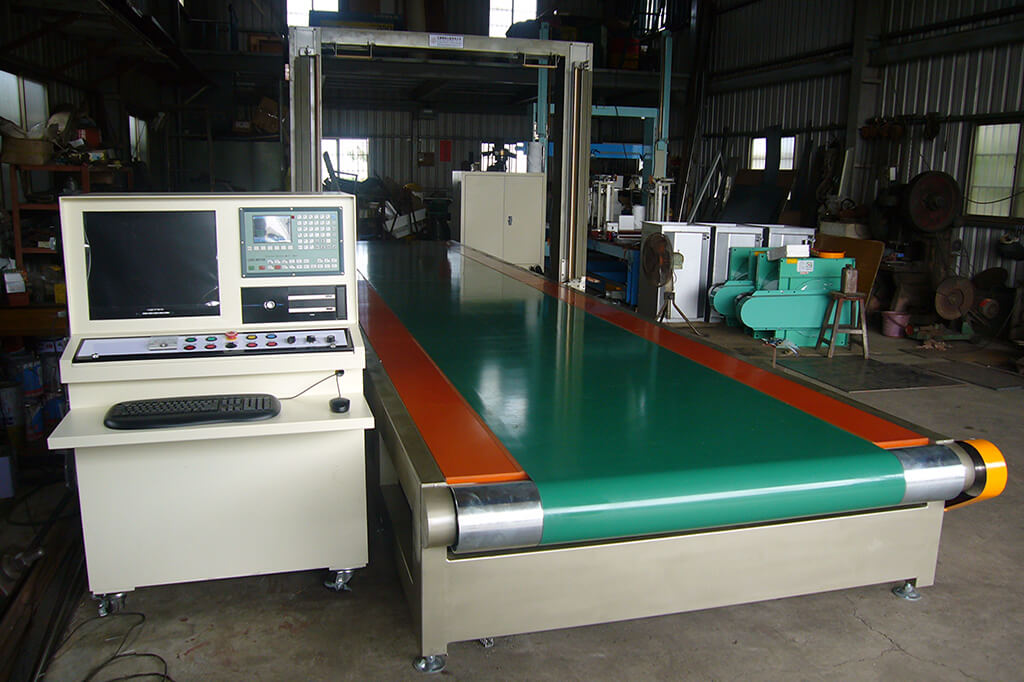

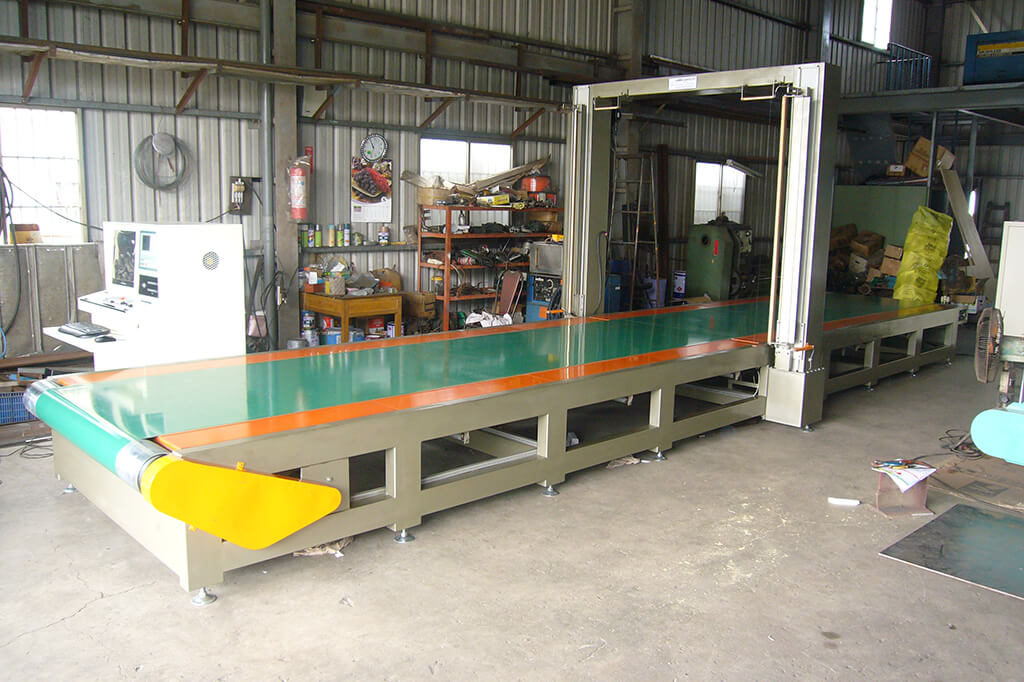

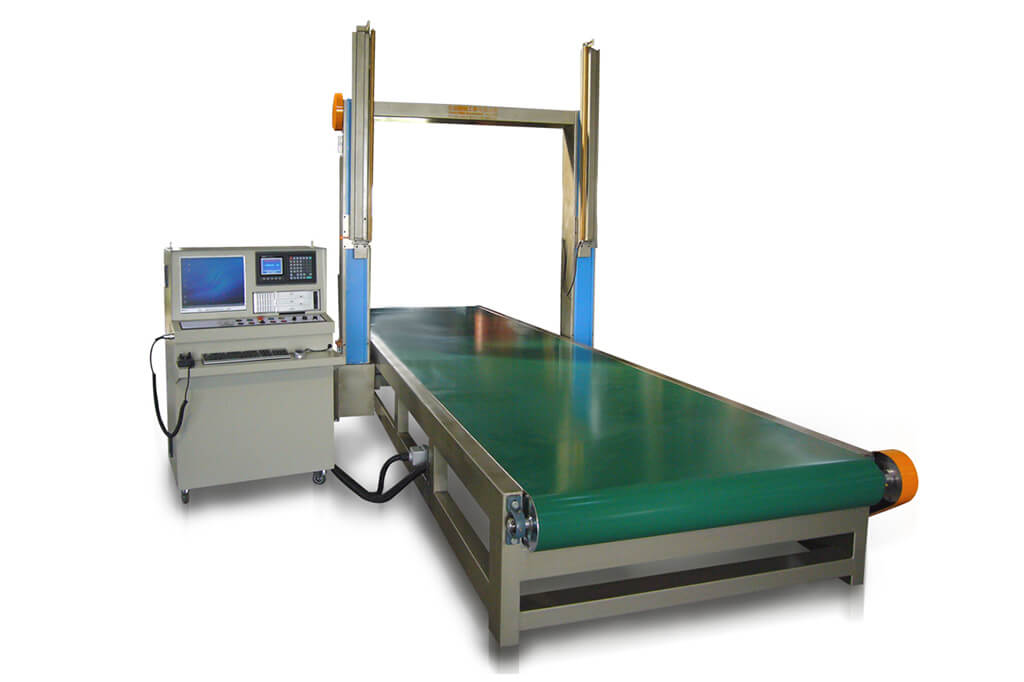

EPS Cut Machine - 2D CNC Cut ( EPS Contour cutting machine )

For EPS cut blocks 2 Axis contour cut by hot - wire.

※ Power require：AC-220V / 380V / 415V  3 lines

※ Block size：the dimension of machine is customized

※ Shearing：
   -Support any kinds of 2D graph cut
   -Packing and architecture modeling manufacture
   -pipe protector, brick for building

※ Heating Wire use :Φ0.3mm / Φ0.35mm

※ Transformer：For Heating wires

※ Temperature：Adjustable by SCR

※ Transmition：Two AC servo motor

※ Transmission：by ball screw and linear guide

※ Industrial CNC Controller / formal CAD/CAM software


Type and Specification
機型
Machine Model		 機械功率
Horse Power		 加工範圍
Cutting Size (L*W*H)		 機械尺寸
Machine Size (L*W*H)
YSM-2DBLCUT-2000 10KW 2000*1000*1000 4800*2000*2100
YSM-2DBLCUT-2500 10KW 2500*1200*1200 5500*2000*2100
YSM-2DBLCUT-3000 10KW 3000*1400*1400 5700*2100*2200
YSM-2DBLCUT-4000 10KW 4000*1500*1500 6500*2100*2450
